Articulated LMI

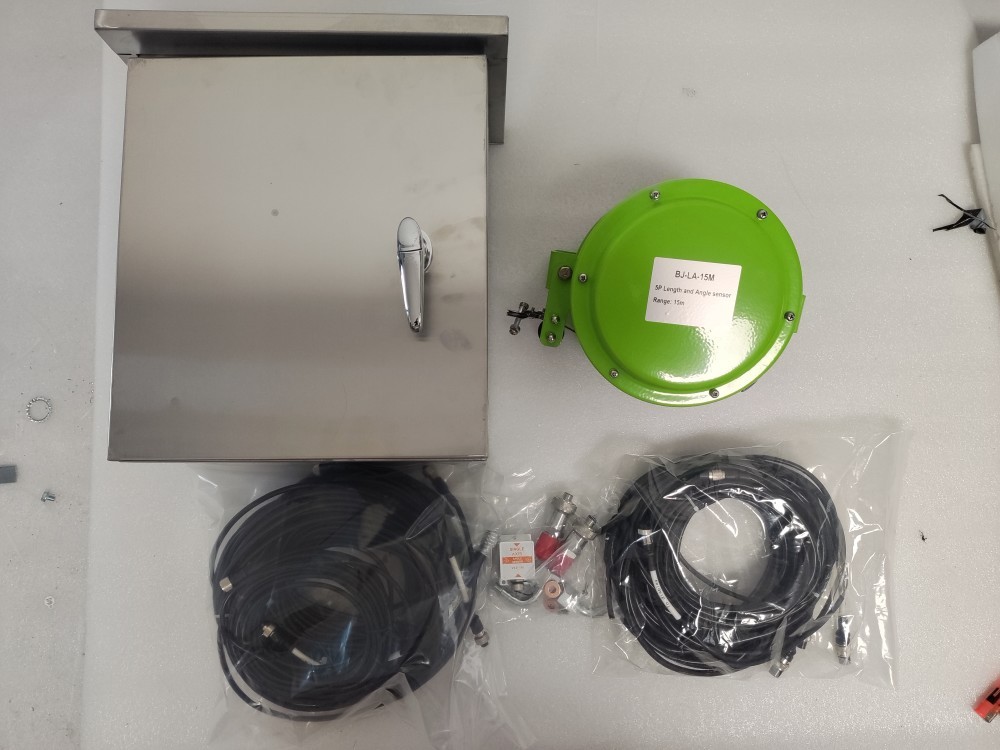

Articulated LMI include display and host computer, control box, length sensor, angle sensor, hydraulic pressure sensor, height limit switch, wires and parts.

1.Features

1.Adopted 6 inches LCD display;

2.Sensor adopts imported mechanism, 3 times overload ability;

3.Use automatic compensation method for the force sensor;

4.The main interface using graphic display,sound and light alarm,automatic control;

5.Can expand to the "black box" function,according to the user's needs can storage alarm record for a long time.


2.Performance parameter

1.Working voltage:DC24V

2.Working temperature:-20℃~+70℃

3.Storage temperature:-30℃~+80℃

4.System error:Less than 5%,display error:Less than 5%,the control error:Less than 5%

5.Relay contact:Capacity:5A AC24V

6.Communication interface:RS232,RS485 and Can bus



 1.jpg  折臂吊图3.jpg

折臂吊图2.png  折臂吊图4.jpg


Installation instance.png

LMI install 1.jpg      LMI Installation instance 4.png


LMI Installation instance dispaly 5.png

LMI Installation instance 3.jpg


LMI Installation instance 8.jpg
