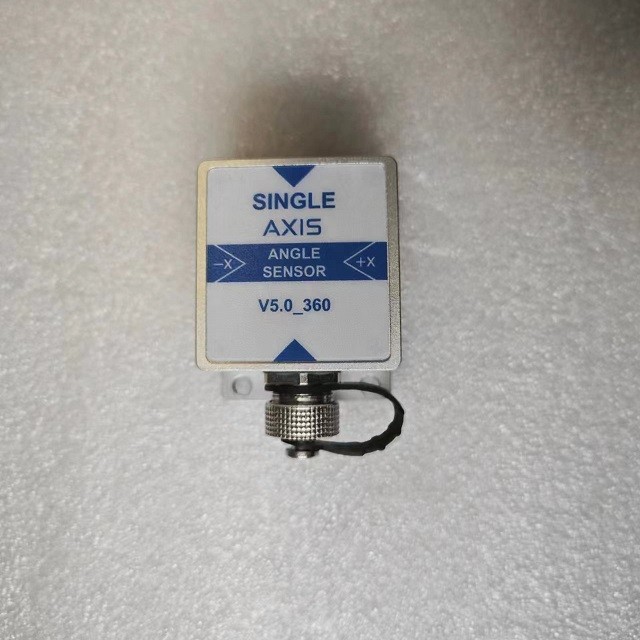

Angle sensor

The V5/V4 series angle sensor is a highly functional and accurate electronic sensor. Rich interfaces, can communicate directly with the upper computer or embedded system through TTL / RS232 / RS485 interface (optional), and models with analog output channels also have dual channel analog voltage output. It has the characteristics of high precision and stable operation, and the maximum output frequency can reach 50Hz.

1. Overview

The V5/V4 series angle sensor is a highly functional and accurate electronic sensor. Rich interfaces, can communicate directly with the upper computer or embedded system through TTL / RS232 / RS485 interface (optional), and models with analog output channels also have dual channel analog voltage output. It has the characteristics of high precision and stable operation, and the maximum output frequency can reach 50Hz.

This product is designed to adapt to harsh working environments, with comprehensive temperature compensation for the operating temperature range, and has reverse connection protection, over voltage and over current protection functions, and bus interface protection function interfaces (optional)

2. Product Features

➢ Has multiple optional digital interfaces: TTL/RS232/RS485;
Wide voltage input of 5-36V;
➢ Equipped with comprehensive reverse protection and ESD protection;
Wide temperature range -40~+85 degrees Celsius, full range temperature compensation, with high and low temperature alarms;
Extremely low power consumption (15MA), high accuracy (0.05 °), high cost-effectiveness, and easy integration.


3. Technical parameter table

angle sensor.png
